Bypassing EDRs: A Red Team Journey with EDRSilencer and WFP Filter Arbitration

Introduction

EDRSilencer, a well-known red team tool, uses the Windows Filtering Platform (WFP) to block Endpoint Detection and Response (EDR) telemetry, creating blind spots for defenders. Despite its long presence and established detections, I recently used EDRSilencer in a red team engagement, uncovering fascinating challenges and insights about WFP Filter Arbitration. In this blog, I’ll share my experience, analyze why some EDRs resisted EDRSilencer’s default approach, and detail how I bypassed its protections by leveraging WFP’s nuances, with a nod to EDRSilencer’s author, Chris Au, for his help. I’ll also share recommendations for EDR vendors to harden their defenses.

Red Team Engagement: EDRSilencer in Action

During a recent engagement, after gaining local admin privileges on a victim machine, I deployed EDRSilencer to disrupt EDR telemetry. Executing EDRSilencer.exe blockedr successfully blocked Kaspersky’s outbound traffic, however, another well-known EDR (referred to as EDR_A) remained unaffected, even after adding its primary service executable to EDRSilencer’s EDR process list.

Digging into EDRSilencer’s GitHub issues (Issue #19) and analyzing the netstat result, I learned that this EDR’s telemetry often operates at the kernel level and originates from the System process (PID 4) rather than user-mode processes. Chris shared a private EDRSilencer version that targeted EDR_A’s remote IPs instead of the user-mode processes, but it still failed to block the agent from connecting back to the cloud server.

I then attempted to block the System process using FwpmGetAppIdFromFileName0(L"SYSTEM", &appId), but this also failed. Suspecting WFP sublayer weight issues, I explored another issue (Issue #20) and modified EDRSilencer’s code to create a custom sublayer with the highest weight 0xFFFF:

• Sublayer: TestFilterSublayer_highest, weight 0xFFFF, with FWPM_SUBLAYER_FLAG_PERSISTENT.
• Filter: Block outbound IPv4 traffic for app ID SYSTEM, applied to FWPM_LAYER_ALE_AUTH_CONNECT_V4.

Despite this, EDR_A’s telemetry still remain persisted. After some discussions with Chris, we believed that EDR_A may use permit filters to whitelist their traffic. To investigate, I developed a Beacon Object File (BOF), adapted from Aon’s Cyber Labs EDRSilencer-BOF to enumerate WFP filters and sublayers. This revealed that EDR_A’s custom sublayer also had the maximum weight (0xFFFF), causing my sublayer to be assigned 0xFFFE. Moreover, EDR_A’s permit filters, applied to FWPM_LAYER_ALE_AUTH_CONNECT_V4 layer, used FWPM_FILTER_FLAG_CLEAR_ACTION_RIGHT, a “hard permit” flag that overrides block filters in lower-weighted sublayers. This led me to study WFP Filter Arbitration and devise a new approach.

Access control on WFP sublayer and filter is another place to be pay attention, but we are not going to discuss this topic in this blog.

Understanding WFP Filter Arbitration

WFP Filter Arbitration determines how conflicting filters (e.g., block vs. permit) are resolved. Key terms include:

• Layer: A stage in the WFP processing pipeline where filters are applied (e.g., FWPM_LAYER_OUTBOUND_TRANSPORT_V4 for transport-layer outbound traffic).
• Sublayer: A subdivision within a layer, prioritized by a weight (0 to 0xFFFF). Higher-weighted sublayers are evaluated first.
• Filter: A rule specifying an action (e.g., block, permit) for matching traffic, with its own weight within a sublayer.
• Weight: A numeric value determining precedence within sublayers or filters.
• Hard Permit (FWPM_FILTER_FLAG_CLEAR_ACTION_RIGHT): A flag ensuring a permit filter’s action is final within the same layer, overriding lower-weighted sublayer blocks.

WFP processes filters in a specific order for outbound traffic (below is a simple demonstration):

1. FWPM_LAYER_OUTBOUND_IPPACKET_V4: Packet-level filtering.
2. FWPM_LAYER_OUTBOUND_TRANSPORT_V4: Transport-layer filtering (e.g., TCP/UDP).
3. FWPM_LAYER_ALE_RESOURCE_ASSIGNMENT_V4: Resource allocation (e.g., socket binding).
4. FWPM_LAYER_ALE_AUTH_CONNECT_V4: Connection authorization.
5. FWPM_LAYER_ALE_FLOW_ESTABLISHED_V4: Established flow processing.

Within a layer, sublayers are evaluated by weight (highest first), and within a sublayer, filters are prioritized by filter weight (highest first). A block filter typically overrides a permit filter regardless of the filter and sublayer weight, but FWPM_FILTER_FLAG_CLEAR_ACTION_RIGHT ensures a permit filter’s dominance against lower-weighted sublayer block filters in the same layer.

Bypassing EDR_A: Blocking at FWPM_LAYER_OUTBOUND_TRANSPORT_V4

Realizing EDR_A’s hard permit filters in FWPM_LAYER_ALE_AUTH_CONNECT_V4 were thwarting my blocks, I hypothesized that applying a block filter earlier in the WFP pipeline could preempt EDR_A’s permits. I conducted local tests targeting Google’s IP (142.250.71.174) across the five outbound IPv4 layers to understand WFP arbitration.

Test Cases and Results

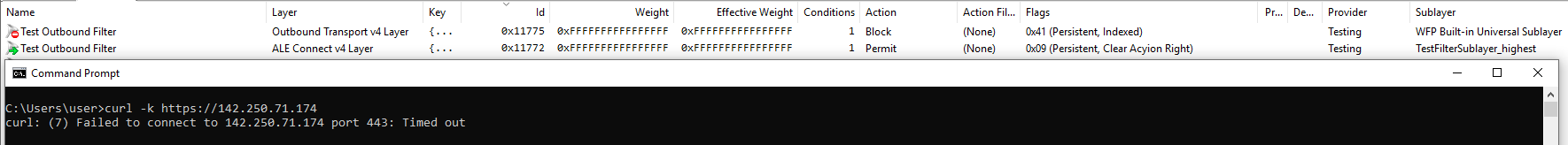

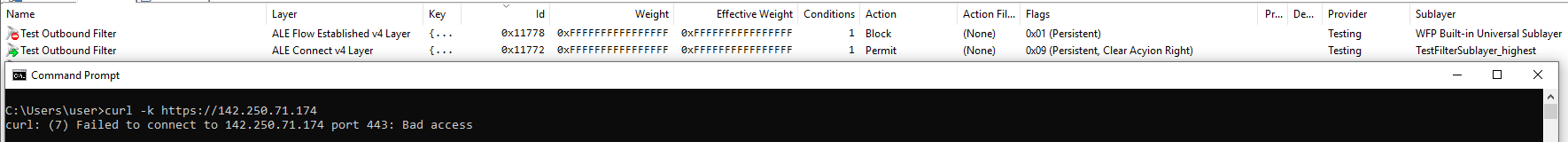

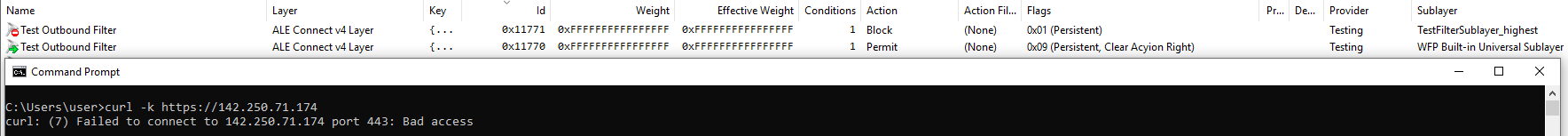

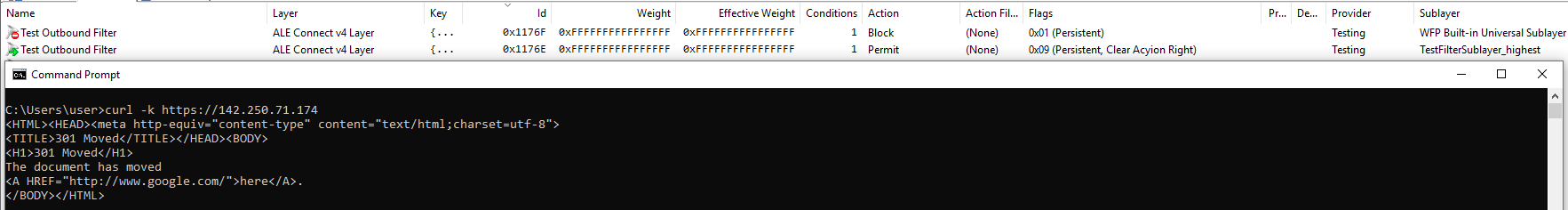

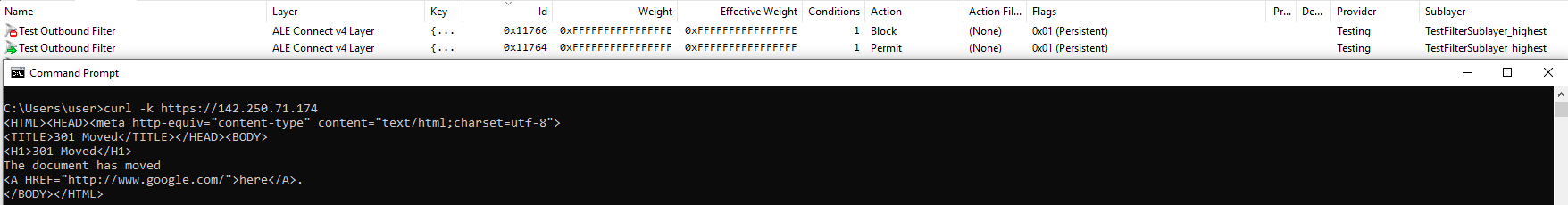

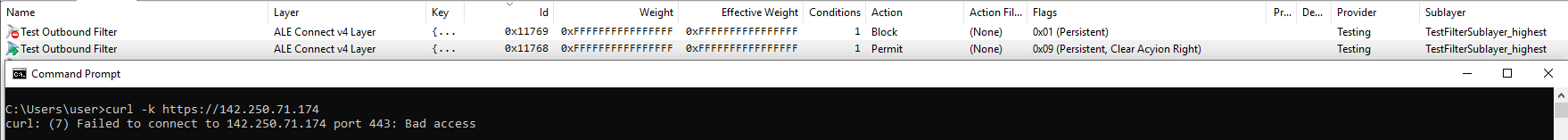

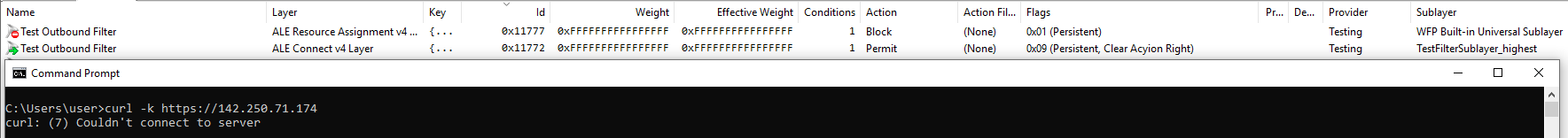

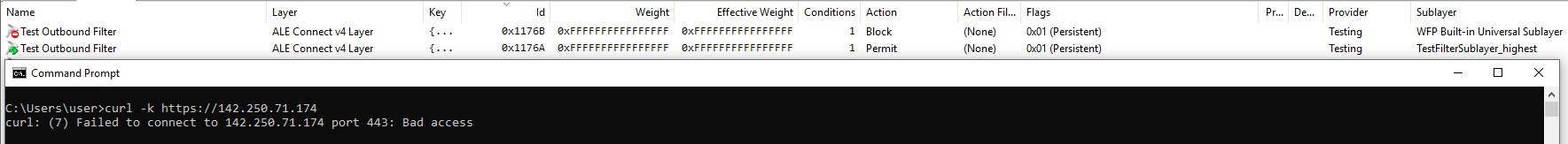

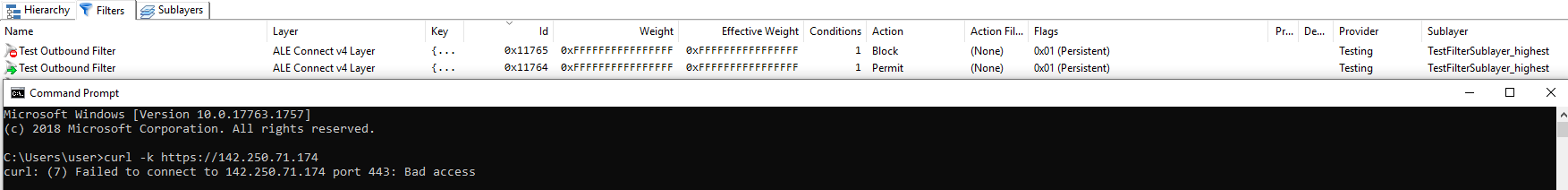

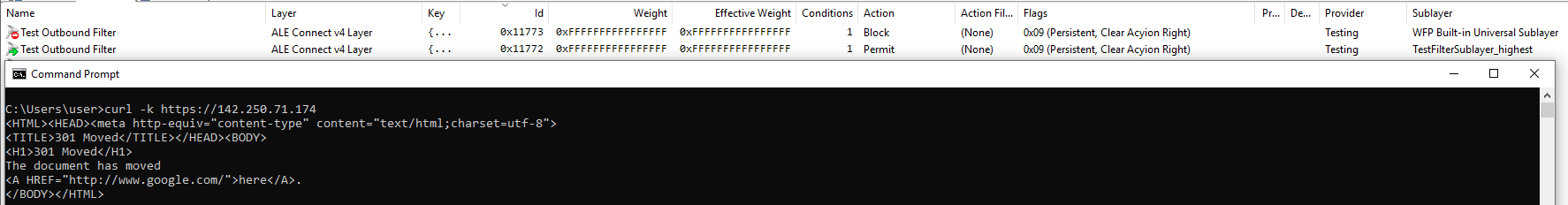

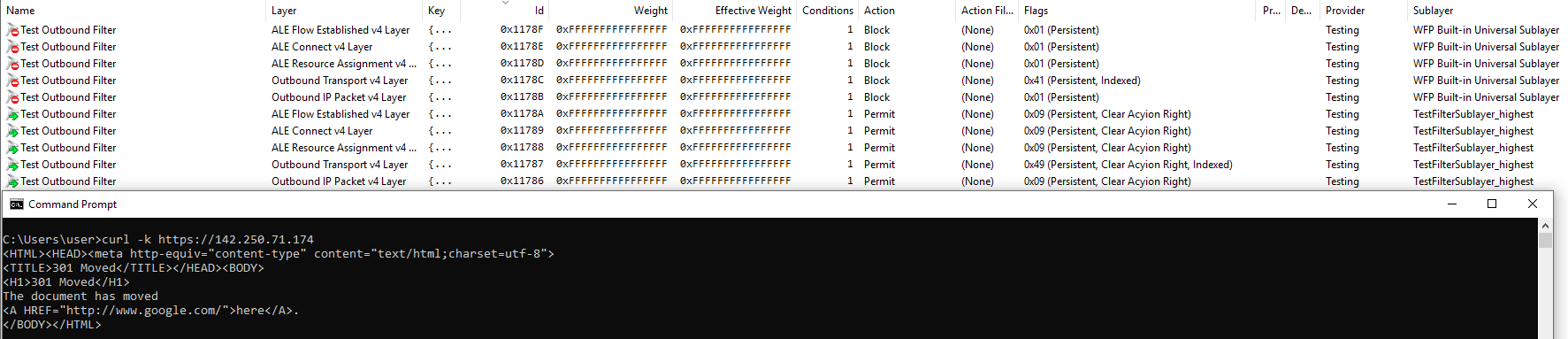

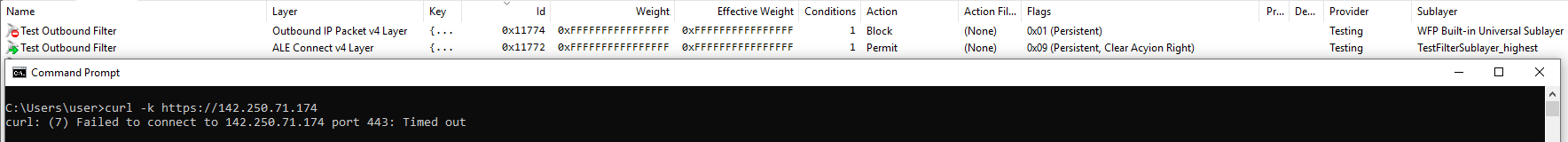

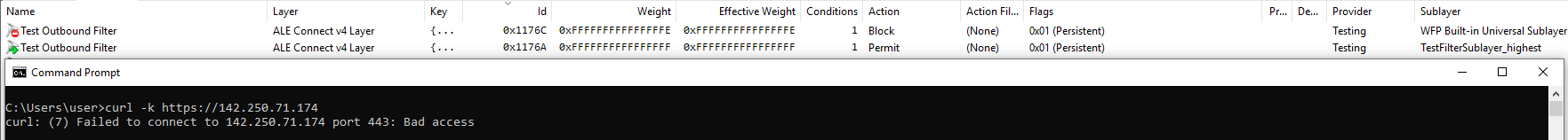

The table below summarizes my test cases, comparing permit and block filters across layers, sublayers, weights, and the FWPM_FILTER_FLAG_CLEAR_ACTION_RIGHT flag, with a screenshot of the test result.

Arbitration Principles

My tests revealed these WFP arbitration rules:

• Same Layer, Same Sublayer: A block filter overrides a permit filter if filter weights are equal (Case 1). A higher-weighted permit filter takes precedence (Case 2). FWPM_FILTER_FLAG_CLEAR_ACTION_RIGHT doesn’t guarantee a permit unless weights differ (Case 3).
• Same Layer, Different Sublayers: Higher-weighted sublayers are evaluated first. Blocks in lower-weighted sublayers can override permits unless the permit uses FWPM_FILTER_FLAG_CLEAR_ACTION_RIGHT (Cases 4–8).

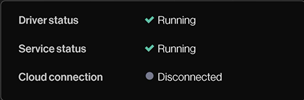

By applying block filters at FWPM_LAYER_OUTBOUND_TRANSPORT_V4 and FWPM_LAYER_OUTBOUND_TRANSPORT_V6 targeting EDR_A’s remote IPs, I successfully disrupted EDR_A’s cloud connectivity, as these filters executed before EDR_A’s permit filters.

The BOF used to enumerate WFP filter and sublayer can be found here, and a code snippet of creating custom sublayer can be found here.

Recommendations for EDR Vendors

To safeguard EDR telemetry against WFP-based attacks, vendors should adopt these strategies:

• Custom Sublayer with Maximum Weight: Create a sublayer with the highest possible weight (i.e., 0xFFFF) to ensure it is evaluated first within its layer. This ensures EDR filters are prioritized over other sublayers within the same layer.
• Hard Permit Filters: Use FWPM_FILTER_FLAG_CLEAR_ACTION_RIGHT in permit filters to guarantee EDR traffic is allowed, overriding lower-weighted sublayer blocks within the same layer.
• Multi-Layer Protection: Deploy permit filters across multiple layers (e.g., FWPM_LAYER_OUTBOUND_TRANSPORT_V4, FWPM_LAYER_ALE_RESOURCE_ASSIGNMENT_V4, FWPM_LAYER_ALE_AUTH_CONNECT_V4) with FWPM_FILTER_FLAG_CLEAR_ACTION_RIGHT. This ensures EDR traffic is permitted at various stages of the network stack, mitigating the risk of early-layer block filters (e.g., FWPM_LAYER_OUTBOUND_IPPACKET_V4) or later-layer block filters (e.g., FWPM_LAYER_ALE_FLOW_ESTABLISHED_V4).

Credit

All the above implementations cannot be done without the help from their research:

• @netero_1010 for EDRSilencer and invaluable discussions.
• Aon Cyber Labs for their EDRSilencer-BOF implementation.

Resources

• EDRSilencer GitHub
• Aon Cyber Labs EDRSilencer-BOF
• WFPExplorer
